LST-TK13

1,500 kg payload electric mini truck for last-mile distribution

1,500kg
Payload: 220km
Range (NEDC): 38.7kWh LFP
Battery: 90km/h
Max speed

1,500 kg payload on a 2,950 kg gross weight
3,090 × 1,720 × 380 mm cargo box
GOTION 38.7 kWh LFP pack
≥ 185 mm ground clearance, ≤ 11 m turning circle
Spare tyre, jack and tool kit included

Request a quotation WhatsApp

Right-hand drive as standard. Left-hand drive available on request for fleet orders. Full specification sheet issued with quotation.

Overview

Built for the duty cycle, not the brochure

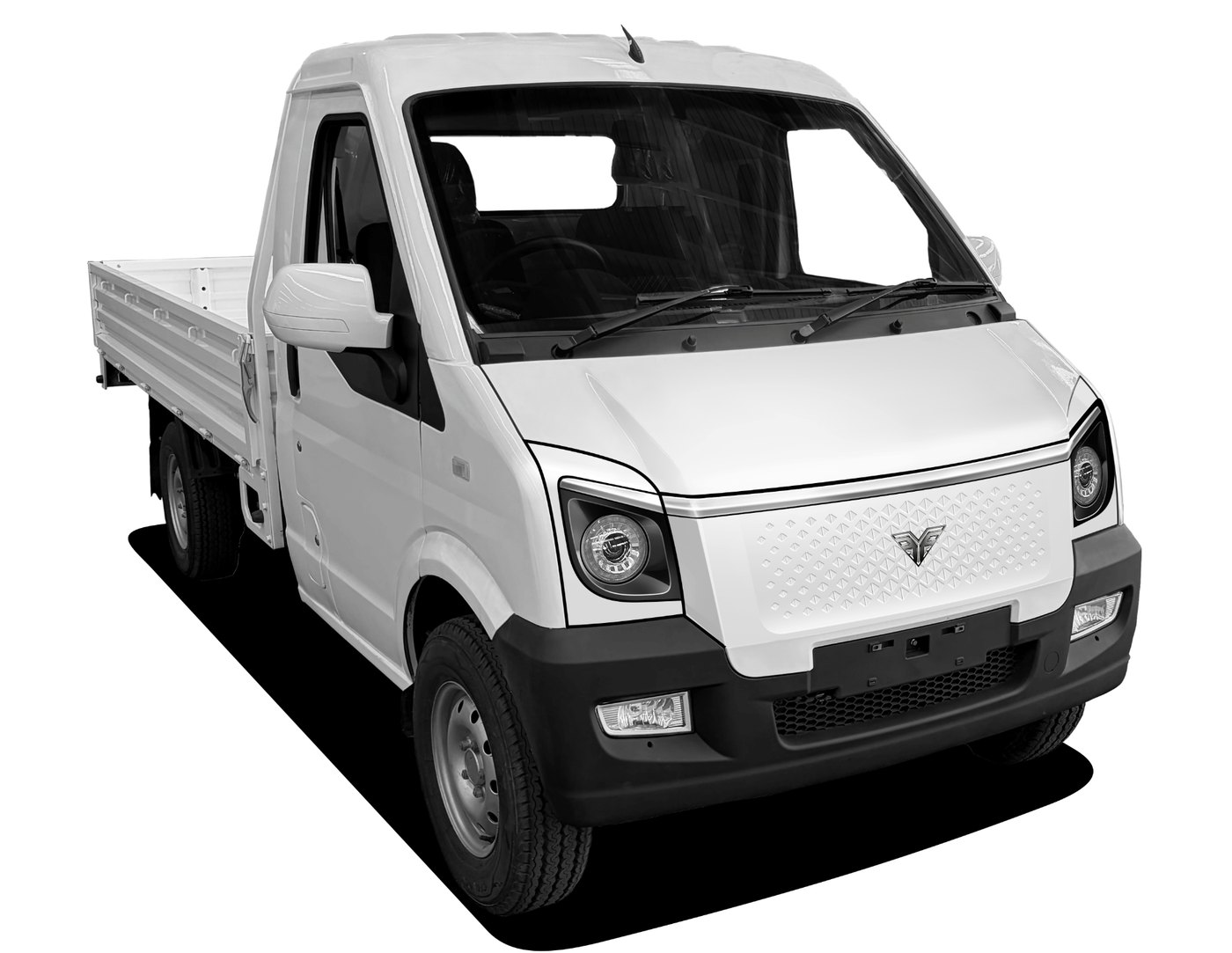

The LST-TK13 is built for the last mile. A 40/80 kW permanent-magnet synchronous motor and a 38.7 kWh GOTION lithium iron phosphate pack carry a 1,500 kg payload up to 220 km on a constant-speed cycle, in a compact 5,060 mm footprint. The 3,090 × 1,720 × 380 mm cargo box takes a standard pallet load, and a 185 mm ground clearance with a ≤ 11 m turning circle keeps it working on unpaved roads and tight yards.

Payload that pays

1,500 kg on a 2,950 kg gross weight means a single TK13 does the work of three cargo tricycles, with a real cab, real brakes and a real warranty.

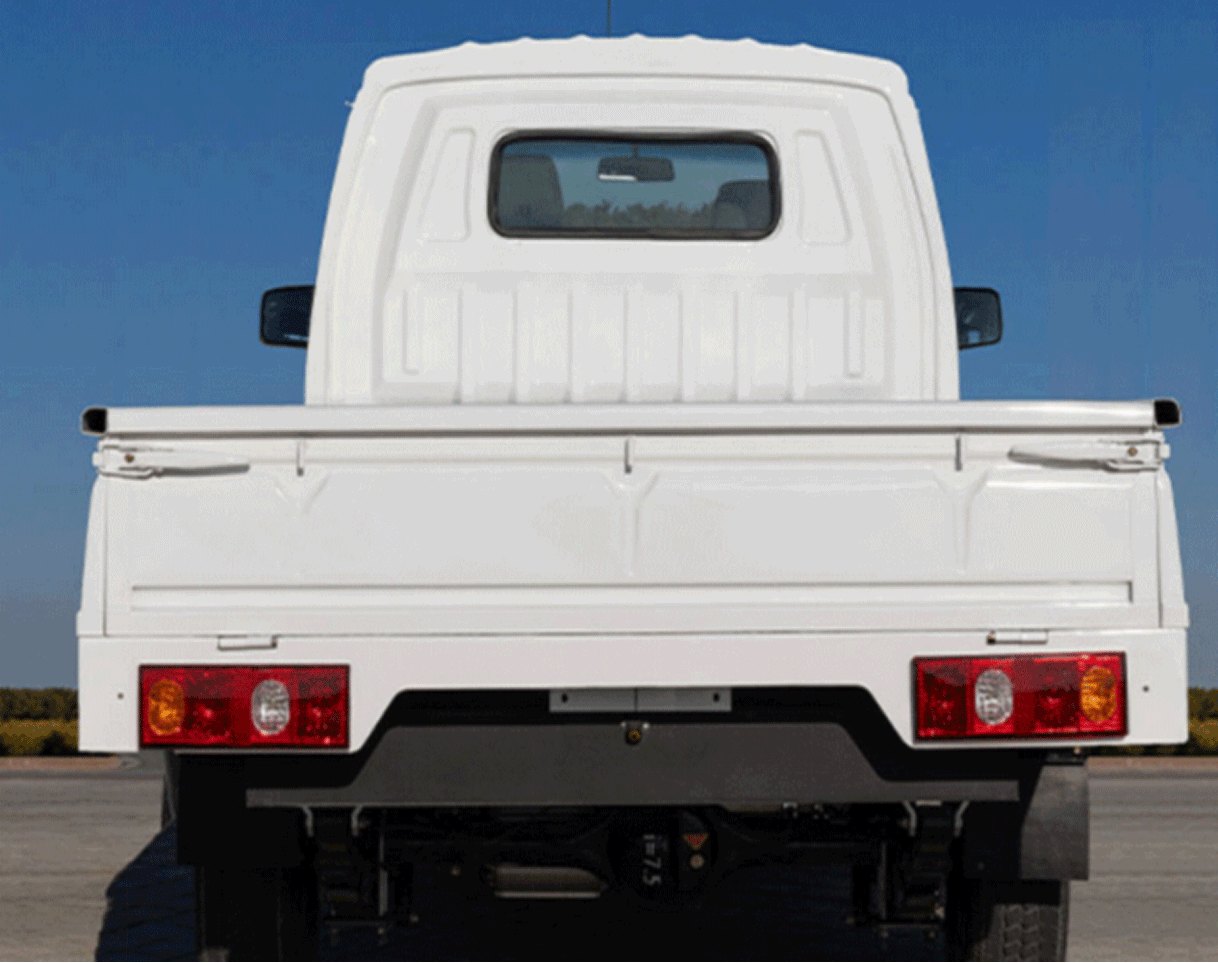

Pallet-ready cargo box

A 3,090 × 1,720 mm floor with 380 mm drop sides takes a standard pallet footprint and loads from three sides, cutting dock time.

GOTION LFP pack

GOTION cells are widely serviced across Africa, South Asia and Latin America, so battery support does not depend on a single supply line.

Built for unsealed roads

185 mm of ground clearance, 38° approach angle and a rear 6-leaf spring pack handle rutted access roads and overloaded days without bottoming out.

Technical data

Full specifications

Dimensions & weight

Length	5,060 mm
Width	1,720 mm
Height	2,000 mm
Wheelbase	3,050 mm
Front / rear overhang	580 / 1,430 mm
Approach / departure angle	38° / 21°
Curb weight	1,450 kg
Maximum total mass	2,950 kg
Load capacity	1,500 kg
Cargo box (L × W × H)	3,090 × 1,720 × 380 mm
Rated seats	2
Minimum ground clearance	≥ 185 mm
Minimum turning diameter	≤ 11 m

Powertrain & battery

Motor	40 / 80 kW PMSM (permanent magnet synchronous)
Battery pack	GOTION lithium iron phosphate (LFP), 38.7 kWh
Range (NEDC, constant speed)	220 km
Maximum speed	90 km/h
Maximum gradability	≥ 20%
Charging port	1 × GB standard DC fast charging port
Slow charging	On-board small DC slow charger
Auxiliary battery	12 V

Chassis

Front axle	Disc brake
Rear axle	Drum brake, gear ratio 12.47
Suspension	Front independent, rear 6-leaf spring
Steering	Electronic power steering (EPS)
Parking brake	Hand brake
Tyres	195R14C, spare tyre included
Rims	14 × 5.5J ET40 steel
ABS	Available
Tool kit	Triangle warning sign, jack, tyre spanner, spare tyre

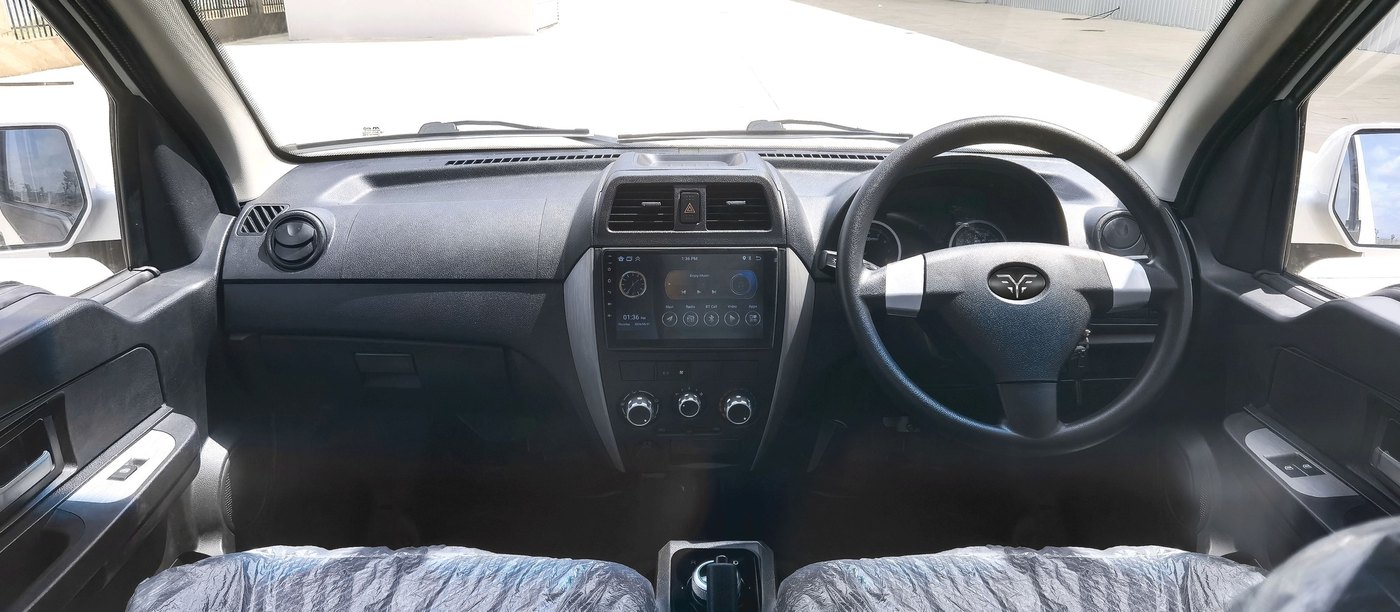

Cabin & equipment

Driver side	Right-hand drive
Seats	Driver seat 4-way manually adjustable, fabric upholstery
Glass	Double laminated windshield, clear tempered door glass
Air conditioning	A/C + PTC cooling and heating
Lighting	Halogen headlights
Audio	Radio, 1 × USB charging port
Parking aid	Rear parking image, central locking
Paint	White 9016 or blue 5015

Figures are taken from the current production specification. Options shown are available at additional cost and subject to market homologation. Final specification is confirmed in the sales contract.
